It is widely used in cement, silicate products, new building materials, refractory materials, chemical fertilizer, black and non-ferrous metal dressing, and glass and ceramics, with dry or wet abrasive ore and other abrasive materials.
There is no inertia impact, the equipment runs smoothly, and reduces the downtime and maintenance time of the mill, improving the efficiency.
Using high quality plate, lining can be replaced, rotary gear using casting gear hobbing processing, the cylinder body is inlaid with wear-resistant lining plate, has good wear resistance.
Ball mill and classifier form closed system, negative pressure conveying, small dust, green environment protection.
The bearing body is lubricated by grease, which greatly reduces friction resistance, and the fuel consumption is extremely low and the operation is more convenient.

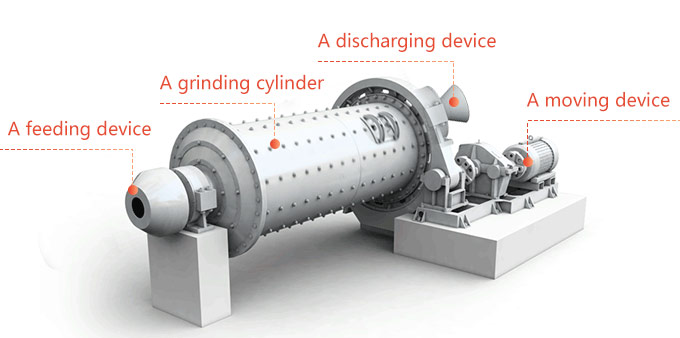

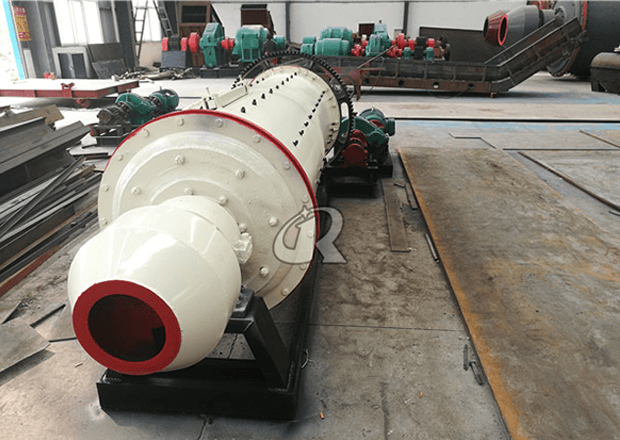

1.Grid ball mill is horizontal cylindrical rotation device, driving by brim gearwheel. There are two chambers and grid.
2.Material goes into the first chamber through the feeding inlet. Inside the first chamber, there are stage liners and ripple liners as well as steel balls with various kinds. The shell rotates which generates eccentricity, this force brings balls to a certain height and then balls drop down by gravity, which will impact and grind the material.
3.After the primary grinding in the first chamber, material goes into the second chamber through segregate screen. In the second chamber, there are fiat liners and steel balls, after the secondary grinding, material is discharged through the discharge screen.
| Specification(m)D×L | Rotary speed(r/min) | Feeding sie(mm) | Capacity | Ball loading | Main motor | Power(kw) | Motor speed(r.p.m) | Main reducer | Reducing ratio | Weight |
| Φ2.2×11 | 22.2 | ≤25 | 15～17 | 50 | JR1512-8 | 570 | 740 | ZD80 | 5 | 83 |
| Φ2.4×8 | 20.91 | ≤25 | 14～18 | 39.5-42 | JR1512-8 | 570 | 740 | ZD80 | 5 | 76.4 |
| Φ2.4×9 | 20.91 | ≤25 | 23~25 C | 50 | JR1512-8 | 570 | 740 | ZD80 | 5 | 81 |
| Φ2.4×10 | 20.91 | ≤25 | O 16~18 | 50 | TR1512-8 | 630 | 740 | ZD80 | 5 | 92.4 |
| Φ2.4×11 | 21 | ≤25 | O 17~19 C 20~22 |
60~62 | YR710-8/1180 | 710 | 740 | JDX630 | 5.6 | 105 |
| Φ2.4×12 | 21 | ≤25 | O 18~20 C 22~24 |
63~65 | YR800-8/1180 | 800 | 740 | MBY710 | 6.3 | 110 |
| Φ2.4×13 | 21 | ≤25 | O 21~22 C 24~26 |
66~68 | YR800-8/1180 | 800 | 740 | MBY710 | 6.3 | 117 |
| Φ2.6×10 | 20.6 | ≤25 | 21~24 | 64 | YR800-8/1180 | 800 | 740 | JDX710 | 6.3 | 133 |
| Φ2.6×11 | 20.6 | ≤25 | 21~28 | 69 | YR800-8/1180 | 800 | 740 | JDX710 | 6.3 | 140 |
| Φ2.6×13 | 20.6 | ≤25 | 28~31 | 80 | YR1000-8/1180 | 1000 | 740 | JDX800 | 6.3 | 151 |
| Φ3.0×9 | 19.3 | ≤25 | 35~40(C) | 80~83 | YR1000-8/1180 | 1000 | 740 | MBY800 | 7.1 | 137 |
| Φ3×11 | 18.92 | ≤25 | 44~47(C) | 95~100 | YR1250-8/1430 | 1250 | 740 | JDX900 | 7.1 | 159 |
| Φ3×12 | 18.92 | ≤25 | 48~52(C) | 103 | YR1250-8/1430 | 1250 | 740 | JDX900 | 7.1 | 164 |
| Φ3×13 | 18.92 | ≤25 | 39~45(C) | 110~116 | YR1400-8/1430 | 1400 | 740 | JDX900 | 7.1 | 183 |
| Φ3.2×11 | 18.3 | ≤25 | 45~48(C) | 110~112 | YR1400-8/1430 | 1400 | 740 | JDX900 | 7.1 | 195.5 |
| Φ3.2×13 | 18.7 | ≤25 | 45~50(O) | 125 | YR1600-8/1430 | 1600 | 740 | JDX1000 | 7.15 | 213 |
| Φ3.4×11 | 18 | ≤25 | 45~55(C) | 115 | YR1600-8/1430 | 1600 | 740 | JDX1000 | 7.15 | 201 |
| Φ3.5×13 Central drive |
17 | ≤25 | 50~55 | 150 | YR2000-8/1730 | 2000 | 740 | JS130-A-F1 | 223 | |
| Φ3.5×13 Edge drive |
17.5 | ≤25 | 50~60 | 150 | YR2000-8/1730 | 2000 | 740 | JDX1000 | 6.3 | 240.5 |
| Φ3.8×13 Bearing |
16.3 | ≤25 | 65~70 | 185 | YR2500-8/1730 | 2500 | 740 | JS130-C-F1 | 240 | |
| Φ3.8×13 Sliding shoe |
16.3 | ≤25 | 65~70 | 185 | YR2500-8/1730 | 2500 | 740 | JS130-C-F1 | 220 | |
| Φ4×13 | 16.3 | ≤25 | 78~80 | 191 | YRKK900 | 2800 | 745 | JS140-A | 220 | |
| Φ4.2×11 Bearing |
15.6 | ≤25 | 120~140 | 190 | YR2800-8/1730 | 2800 | 740 | JS140-A-F1D | 245 | |
| Φ4.2×13 Bearing |
15.6 | ≤25 | 140~155 | 225 | YRKK1000-8 | 3350 | 740 | JS150-A | 260 | |
| Φ4.2×13 Central shoe |
15.6 | ≤25 | 140~155 | 225 | YRKK1000-8 | 3550 | 740 | JS150-A | 280 | |
| Φ4.2×13 Sliding shoe |
15.6 | ≤25 | 140~155 | 225 | YRKK1000-8 | 3550 | 740 | JS150-B | 260 | |
| Φ4.6×13.5 Welding shoe |
14.5 | ≤25 | 140 | 280 | YRKK1000-6 | 4500 | 995 | 365 | ||
| Φ4.6×14 | 14.5 | ≤25 | 145 | 285 | YR1000-6 | 4500 | 995 | 372 | ||
| Φ5.0×15 | 14 | ≤25 | 160~165 | 350 | YRKK1000-8 | 6000 | 740 | 420 |
