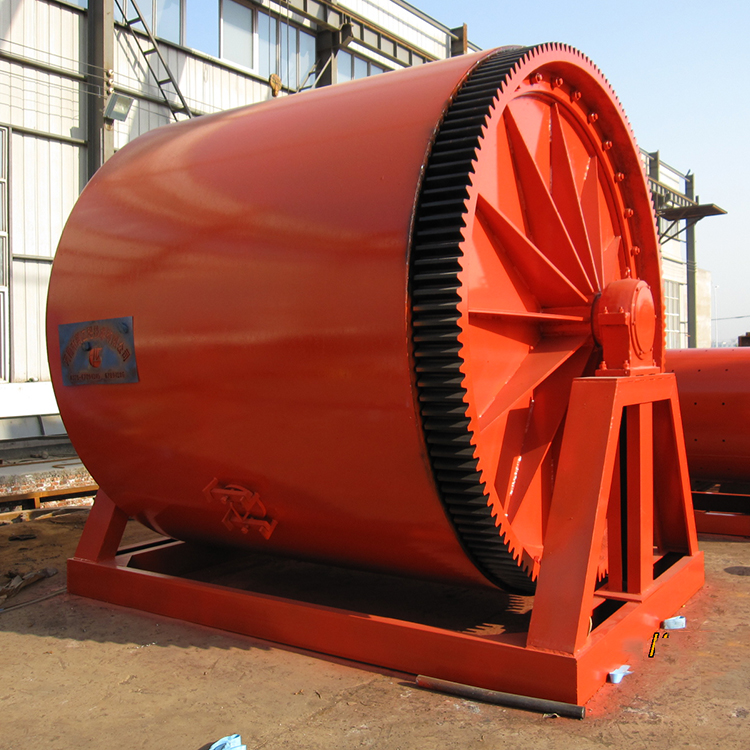

Intermittent Ball Mill

Intermittent ball mill which adopts the intermittent operation, is used for fine grinding and mixing the material such as feldspar, quartz, clay ceramic raw materials. The discharging size can through through 1000 sieve pore. This machine is high milling machinery, materials should be Broken in the fineness of the state into the grinding mill to get the highest efficiency and economic benefits.

Output size 30-400 mesh

Capacity 0.5-100 t/h

Power 18.5kw-1000kw

ISO 9001 Certified 20+ Years Global Service

Get Quote WhatsApp

Applicable Material

It has been widely used in ultra-pure and ultra-fine processing of quartz, feldspar, zircon sand, zirconium silicate, alpha alumina, ceramic materials, luminescent materials, electronic materials, and refractory materials.

Product Features

Simple structure, smooth operation

There is no inertia impact, the equipment runs smoothly, and reduces the downtime and maintenance time of the mill, improving the efficiency.

Parts wear resistant, long life

Using high quality plate, lining can be replaced, rotary gear using casting gear hobbing processing, the cylinder body is inlaid with wear-resistant lining plate, has good wear resistance.

Closed system is adopted to reduce dust

Ball mill and classifier form closed system, negative pressure conveying, small dust, green environment protection.

Reliable operation, energy saving effect is remarkable

The bearing body is lubricated by grease, which greatly reduces friction resistance, and the fuel consumption is extremely low and the operation is more convenient.

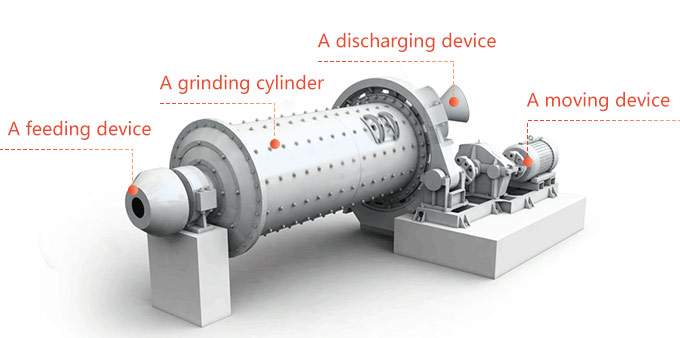

Working Principle

1.Intermittent ball mill is a horizontal rotating device transmitted by the outer gear.

2.The materials are transferred to the grinding chamber through the quill shaft uniformly.

There are ladder liner and ripple liner and different specifications of steel balls in the chamber.

3.The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials. The ground materials are discharged through the discharging board thus the grinding processes finished.

Technical Parameter

Model	material loading (Ton/time)	Drum rotation speed (r/m)	Motor(KW)
800×600	0.075	42	3
900×1200	0.2	38.5	5.5
1300×1500	0.5	33	7.5
1500×1800	1.2	28.5	11
1800×2000	1.5	24	15
2600×2800	5	16.5	37
3000×3800	10	14.5	55
3200×4600	15	13.5	75
3400×6600	18	13	135
