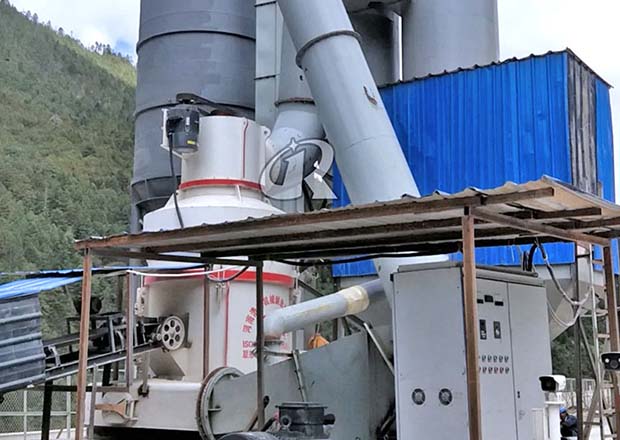

Silica Sand Grinding Mill Plant

Grinding silica sand rapidly destroys ordinary steel components. Every wear surface in this silica sand grinding mill plant – from the grinding roller sleeves and grinding ring to the classifier rotor and fan impeller – is manufactured from high-chromium alloy and reinforced with advanced heat treatment. Critical internal linings and ducts are lined with ceramic or high-alumina wear tiles. This heavy-duty protection extends the service life of core components by 2–3 times compared to conventional mills, dramatically reducing the running cost per ton of silica powder produced by your silica sand grinding machine.

Washed or mined silica sand often carries 5–12% surface moisture that can block a standard dry mill. This silica sand powder making machine plant is equipped with a hot air furnace that introduces controlled-temperature air into the grinding chamber. The material is flash-dried as it is ground, preventing roller coating and ensuring a smooth, continuous flow. You save the cost and space of a separate rotary dryer.

Different applications require strictly different silica powder fineness. The integrated high-efficiency forced-air classifier in this silica sand raymond mill plant allows you to dial in and maintain an exact particle size. Produce 80–150 mesh sand for foundry and construction, 200–325 mesh powder for glass batches, or ultra-fine 400 mesh silica flour for high-performance fillers and ceramics. The steep particle size distribution ensures consistent quality and avoids oversized particles that cause defects.

Given silica's hardness, throughput is always a challenge. Our silica sand grinding machine uses an oversized centrifugal fan and optimized grinding cavity geometry to maximize the air-swept volume. This rapidly evacuates fine particles, preventing over-grinding and allowing the mill to process more material per hour. The plant achieves up to 15–20% higher capacity than standard mills at the same installed power.

Respirable crystalline silica dust is a serious health hazard and a strictly regulated emission. The entire silica sand grinding mill plant operates under a negative-pressure sealed environment. A high-efficiency pulse-jet bag filter captures all airborne particles, with emission levels maintained well below 20 mg/m³. The system protects your workforce, ensures full regulatory compliance, and recovers all captured dust as product.

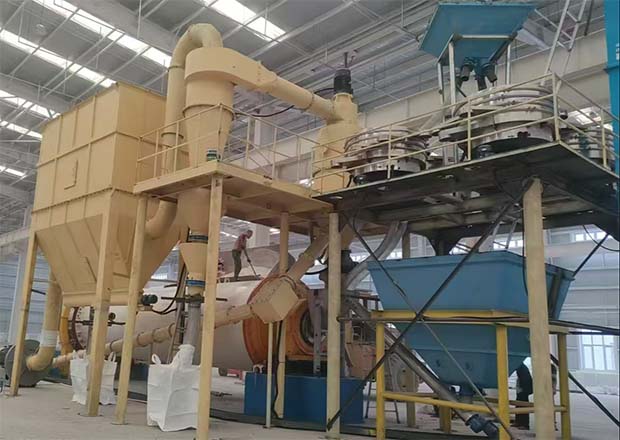

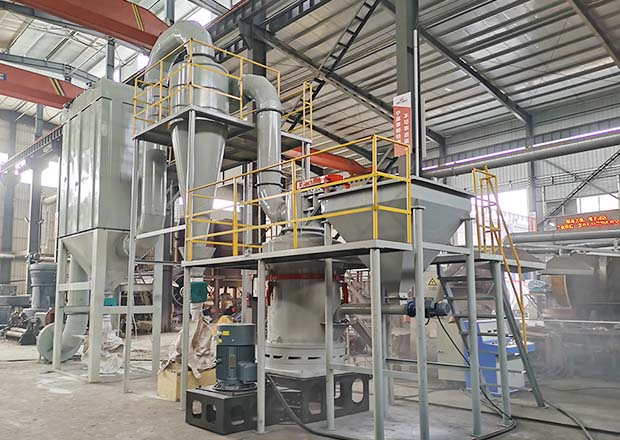

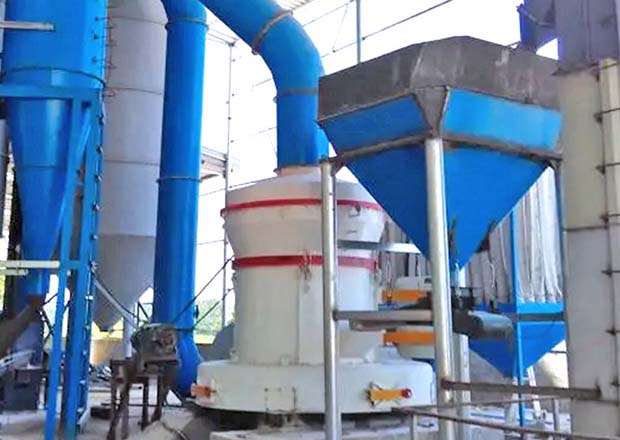

You receive a fully integrated, ready-to-run plant. Our silica sand powder making machine plant includes a primary jaw crusher, bucket elevator, storage hopper, vibrating feeder, the core silica sand raymond mill with hot air system, forced-air classifier, cyclone collector, pulse-jet bag filter, and an automatic packing machine. All components are sized and matched for your specific capacity requirement. Our engineers handle the layout, foundation design, installation supervision, and commissioning.

Yes. This is our core competence. Our silica sand grinding mill plant is built with high-chromium alloy wear parts and ceramic-lined internal surfaces specifically to process Mohs 7 quartz. It is not a general-purpose mill; it is an abrasion-resistant system designed for silica.

Silica sand is highly abrasive, so wear life is shorter than for softer materials. With our heavy-duty high-chromium alloy components and ceramic lining, the main grinding parts in the silica sand grinding machine typically last 3–6 months in continuous 200-mesh production, significantly longer than standard steel parts.

Using a 5R4119 silica sand powder making machine plant, you can expect approximately 1.0–2.5 tons per hour of 325-mesh silica flour, depending on the purity and initial size of your sand. Finer grinding significantly reduces capacity due to quartz hardness.

Yes. The integrated hot air system of the silica sand grinding mill plant can dry sand with up to 12% moisture while grinding it, eliminating the need for a separate dryer and ensuring continuous operation without blockage.
